Before and After

In this section, I will talk about fossil preparation. The various tools I use for fossil preparation will be discussed and then I will show some examples of fossils before and after preparation.
All photographs on these web pages are not to be copied or used for any purpose without my written permission.

Click on image to enlarge.


Tools

The use of hammer and chisel in fossil preparation is ancient history. Today, there are a number of power tools available to the fossil preparator. First and most important is the gas powered, diamond bladed saw for removal of the fossil from the field. Once the fossil has been cut out, it can easily be transported to the lab where the real work of preparation begins. A number of pneumatic tools are available for removal of the matrix (rock) from the fossil. I have four different air scribes that I use. These tools are pictured below. Fourth from the left is a tool commonly called the Chicago Pneumatic. This tool is used for bulk removal of the rock. It should not be used near the fossil as its main function is to break off large pieces of rock. The first and third scribes are referred to as ARO tools. The names come from the original manufacturer of the tools and are carried over to clones of the same tools. The ARO is used for removal of rock near the fossil. There are modified versions of the ARO that have longer, girthier tips that help in reaching difficult spots. My main tool is the ARO with the standard tip (far left). It works well both in and out of the air abrasive box. When using a scribe in the box under a microscope, the longer tips are difficult to use due to the limited space and depth of field. The Micro Jack #3 (second from left) is for very fine work right next to the fossil specimen. I find it to be the least useful of all the scribes. Generally the ARO works well to a point and then I switch to the air abrasive unit.

The air abrasive unit (pictured below) is a fine sand blaster. It is used to abrade the rock away. Most of the fine detailed work is carried out with this device. It can remove rock around the fossil and if used carefully remove the fine cemented dust covering the fossil specimen. Since this device is a sand blaster, you will need a box that is equipped with a dust removal system. It also helps to have a stereo microscope mounted on top of the box. Use of a microscope makes for a day and night difference with respect to detail in fossil prep. I once did all of my prep work without a microscope until a friend loaned me one to try. The difference was so dramatic that by the end of the week I owned a microscope. When using the box and microscope, lighting becomes extremely important. I have three different source of lighting in my box. I have a simple flourescent light unit and two halogen spot lights inside the box and a flexible lighting unit that sits on top of the box.

Once the fossil has been cleaned, the matrix will need some work to remove unsightly scribe marks. This process is known among fossil preparators as landscaping. It requires a tool for grinding the rock around the fossil to remove scribe marks and smooth out the matrix. The grinding tool I use is shown with the airscribes on the far right. If you click on the image, you can see a diamond grinding wheel at the tip. The tip comes in a variety of grits so that you can control the fineness of the finish. I use a Foredom tool as my grinder, but there are other lower cost tools available.

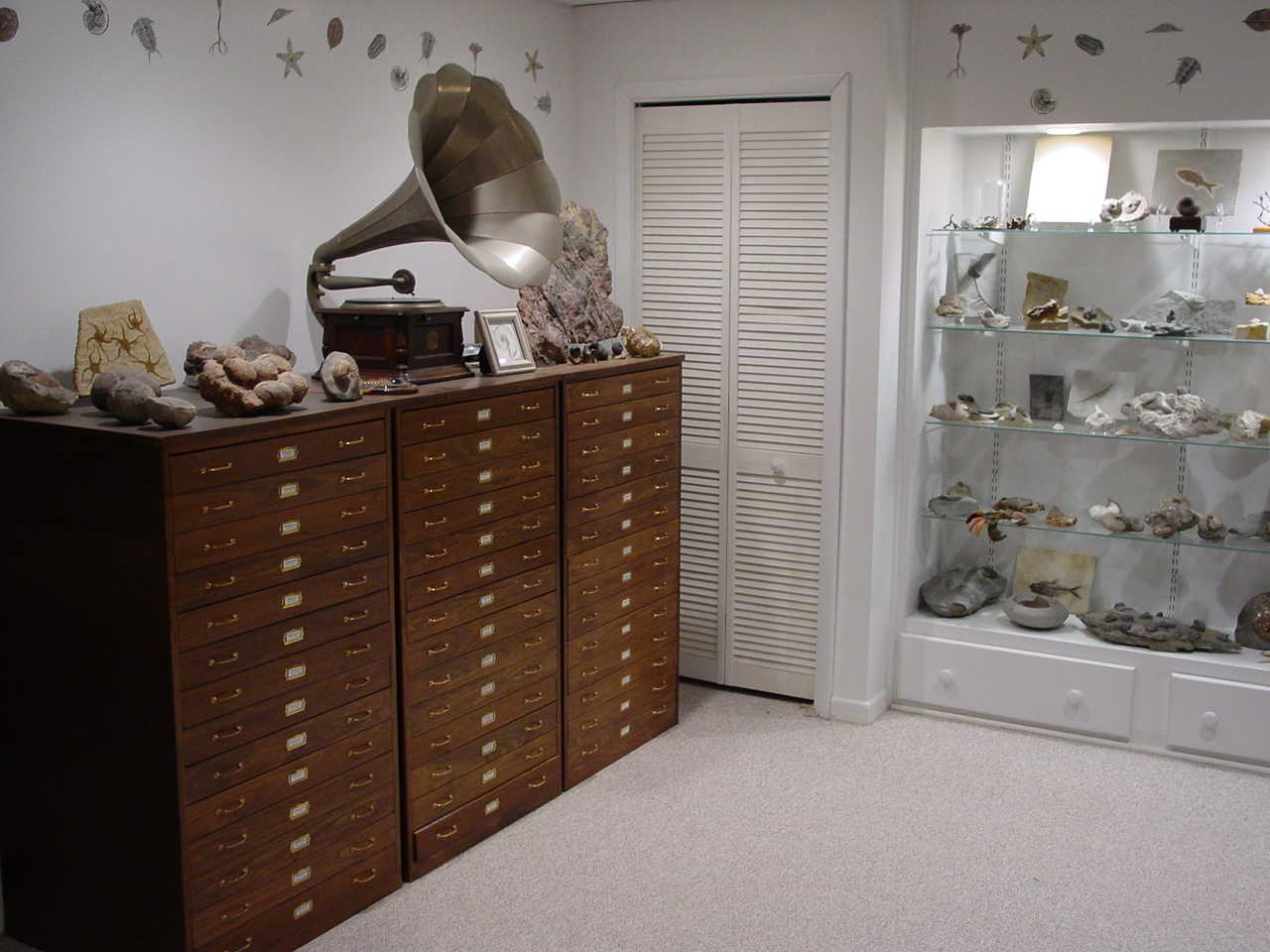

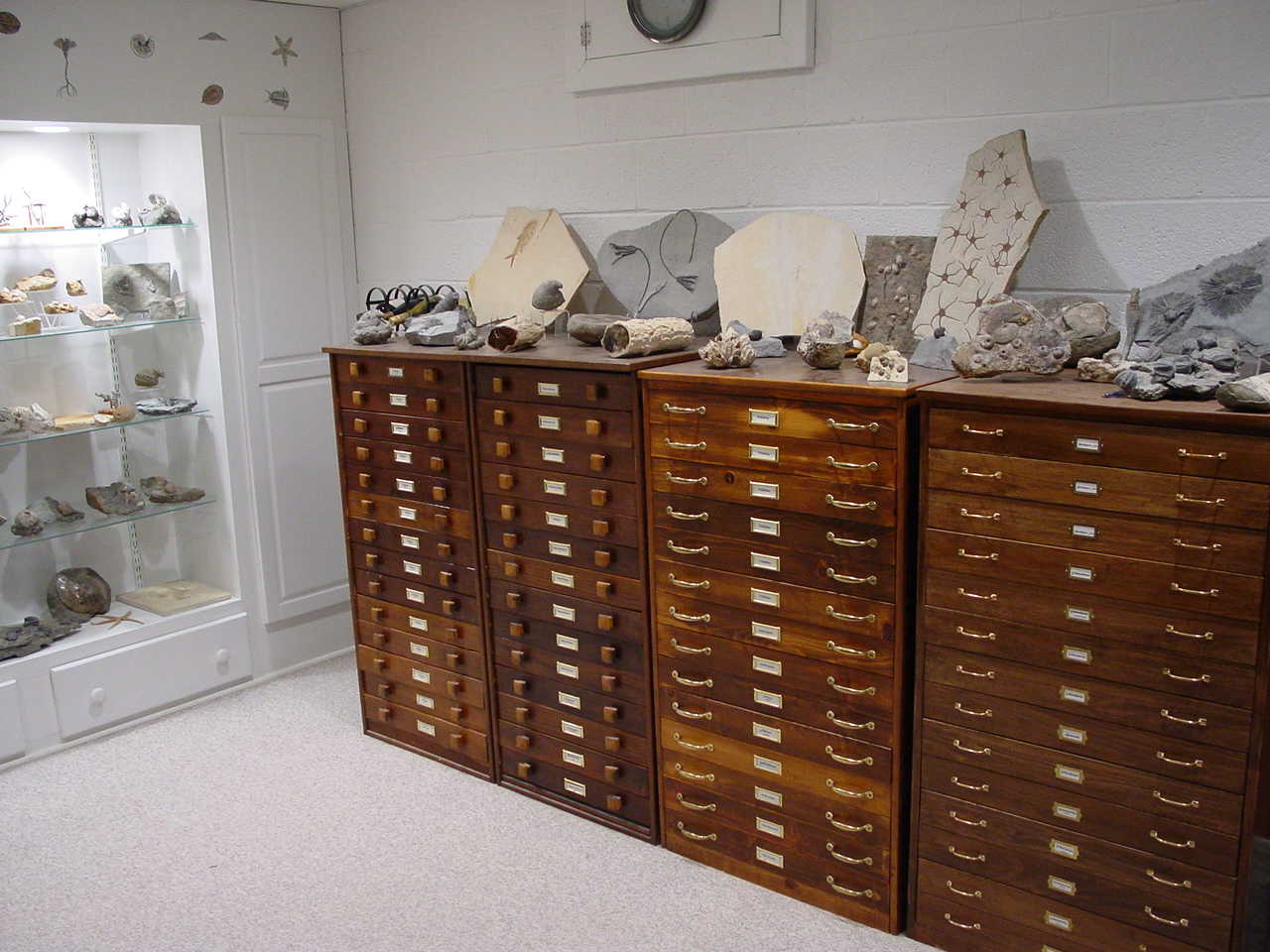

Now your fossil is ready for display or storage into a collection cabinet. The cabinets pictured below have evolved over time. They are custom made by me (with some help from friends). For the right price they can be built for you or you can purchase the plans. Plans are for the final version of the cabinets which are pictured in the left picture. The display shelves are built into the basement wall and are permanent. The wall art work is by Barbara M.


Air Scribes
Connectors
Air Abrasive
Work Box
Air Scribes
Connection to Air source
Air Abrasive
Work Box

home display
home display




Specimens



Before ....................... After
Before ....................... After

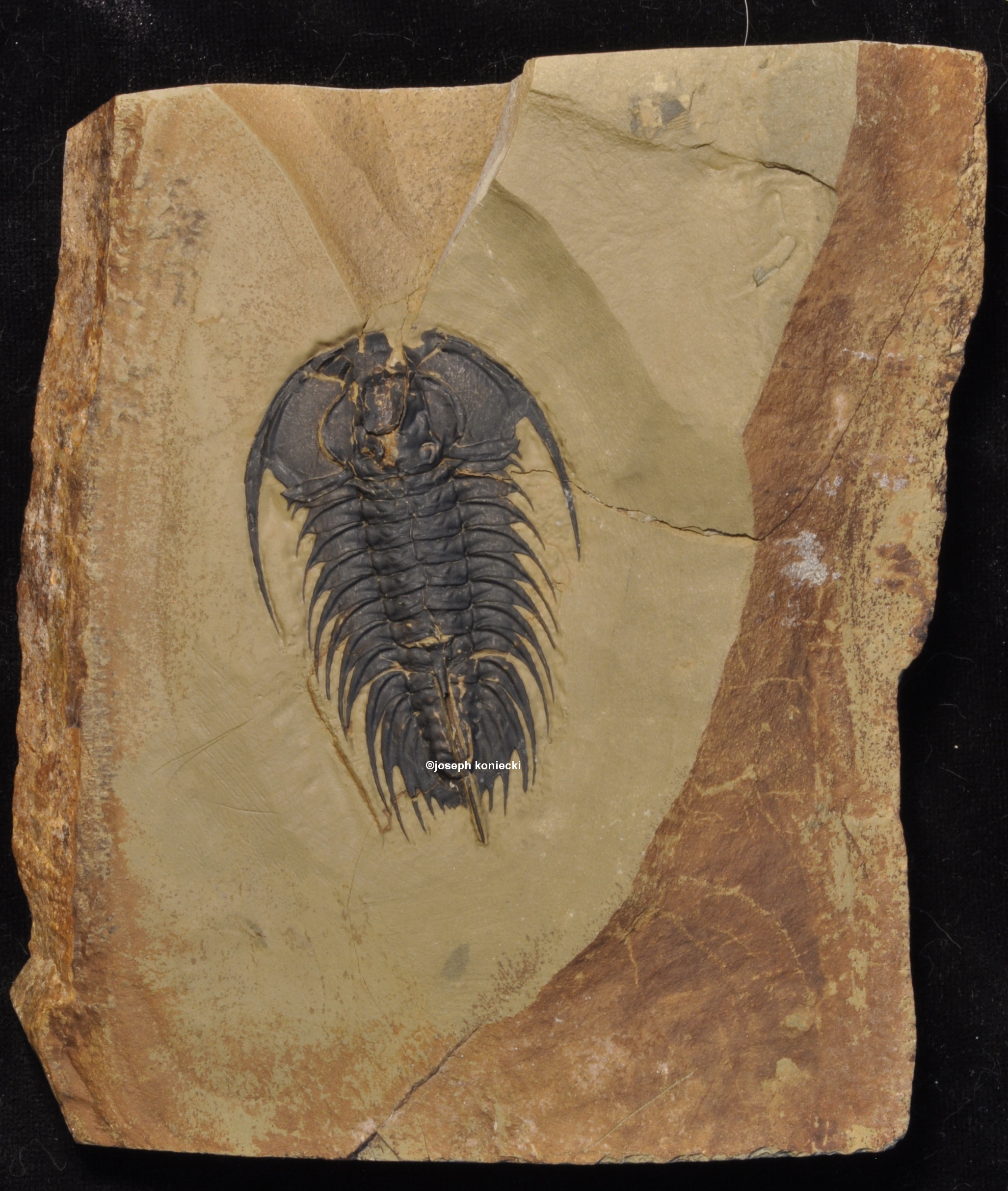

Ceraurus
Ceraurus
Ceraurus
Prep work by S. Vergiels
Ceraurus
Ceraurus
Ceraurus
Prep work by J. Koniecki


Glyptocrinus
Glyptocrinus
Glyptocrinus
Prep work by J. Koniecki
Glyptocrinus
Glyptocrinus
Glyptocrinus
Prep work by J. Koniecki


Reteocrinus
Reteocrinus
Reteocrinus
Prep work by J. Koniecki
Dizgocrinus
Dizgocrinus
Dizgocrinus plus other crinoids
Prep work by J. Koniecki


Daedalocrinus
Daedalocrinus
Daedalocrinus and starfish
Prep work by J. Koniecki
Phacelocrinus
Phacelocrinus
Phacelocrinus
Prep work by J. Koniecki


Crinoids
Crinoids
Various Crinoids
Prep work by J. Koniecki
Crinoids
Crinoids
Batocrinus
Prep work by J. Koniecki


Crinoids
Crinoids
Traumatocrinus
Prep work by J. Koniecki
Crinoids
Crinoids
Uperocrinus
Prep work by J. Koniecki


Crinoid
Crinoid
Zeacrinites
Prep work by J. Koniecki
Cystoids
Cystoids
Caryocrinites
Prep work by J. Koniecki


Arthroacantha
Arthroacantha
Arthroacantha
Prep work by J. Koniecki
Crinoid
Crinoid
Batocrinus
Prep work by J. Koniecki


Cactocrinus
Cactocrinus
Cactocrinus
Prep work by J. Koniecki
Bryozoa
Bryozoa
Prasopora
Prep work by J. Koniecki


Periglyptocrinus
Periglyptocrinus
Periglyptocrinus
Prep work by J. Koniecki
Dechenella
Dechenella
Dechenella
Prep work by J. Koniecki


Aulacophyllum
Aulacophyllum
Aulacophyllum
Prep work by J. Koniecki
Gennaeocrinus
Gennaeocrinus
Gennaeocrinus
Prep work by J. Koniecki


Paraspirifer
Paraspirifer
Paraspirifer
Prep work by J. Koniecki
more to come
Prep work by
